Image Search

Search your product catalog with a picture instead of a text query. Image search runs through the standard search endpoint. The only differences are that the request is sent as multipart/form-data with the image attached, and it must target a search engine that has been configured for image search.

This guide covers both parts:

1. Setup: create an image search engine and a deployment that uses it.
2. Searching: send image requests to the search endpoint.

Prerequisites

• Image search must be enabled for your account. The service needs an image model built from your catalog before it can answer requests. If you are not sure whether this has been done, contact your account team.
• API credentials for the search endpoint: an API key and secret.
• Access to the engine and deployment management UI in the XGen Platform.

Part 1: Setup

An engine holds the search settings. A deployment points at an engine and is what your storefront references at request time. You need one engine configured for image search, and a deployment that uses it. If you already manage engines and deployments through the platform UI, you can create them there instead. The fields are the same.

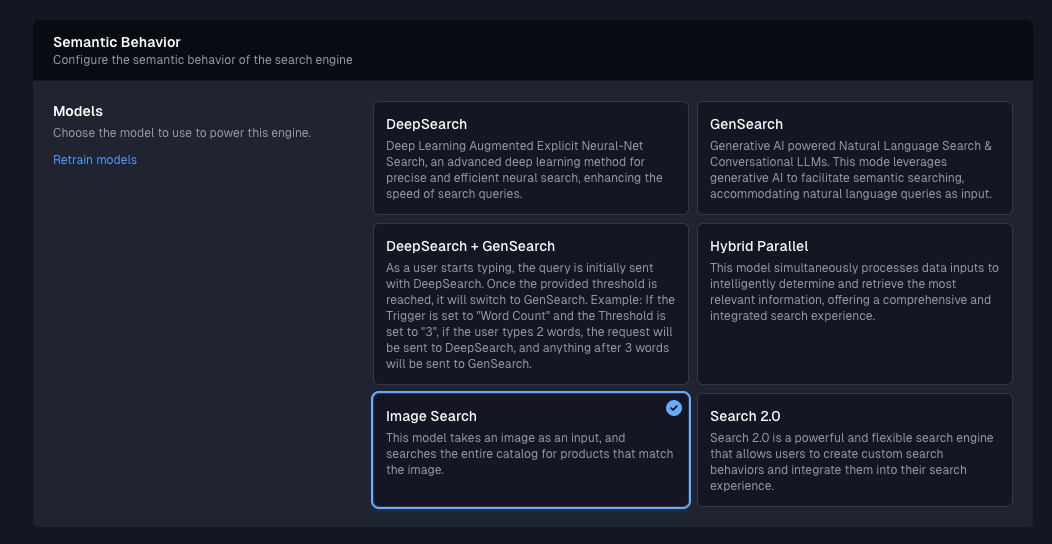

Step 1. Create an image search engine

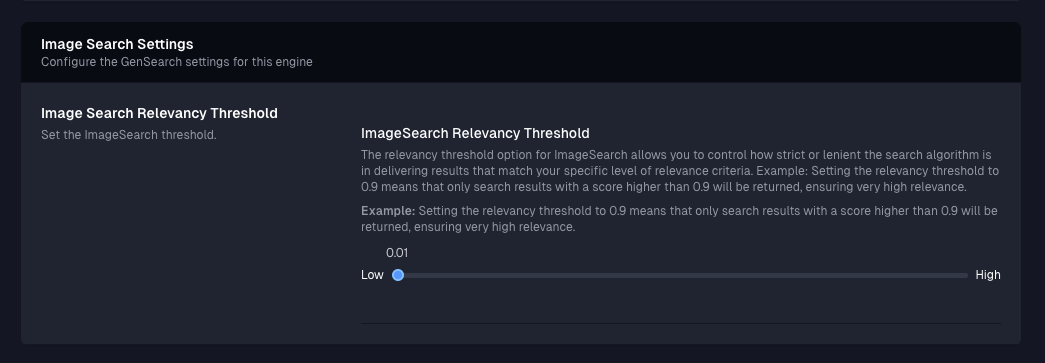

You can adjust the image search relevancy threshold here.

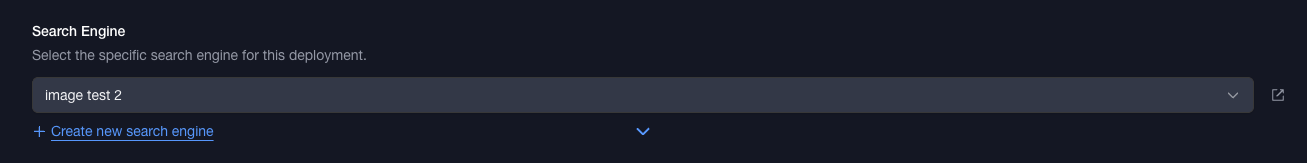

Step 2. Create a deployment that uses the engine

Part 2: Searching

Endpoint

POST https://prompt.xgen.dev/customers/{customer_id}/users/{user_id}

This is the same endpoint used for text search.

Authentication

Every request must be authenticated in one of two ways.

Option 1: API key and secret. Send both headers.

The response includes a short-lived token in user_data.access_token that you can reuse with option 2. Tokens last 12 hours and are bound to the customer_id and user_id used to create them.

Option 2: Access token.

Keep the API secret on your server. Do not ship it in browser or mobile code. A common pattern is for your backend to call the API once with the key and secret, then hand the returned access token to the client.

Request body

Send the body as multipart/form-data with two parts.

The image part must carry a Content-Type of image/jpeg, image/jpg, or image/png. Most HTTP clients set this from the file extension. If yours does not, set it explicitly or the request is rejected.

Fields inside the json part:

A query field is not needed. The image is the query.

Example json part:

{
  "deployment_id": "8b23b0d6-5ed1-4c92-a317-ed0b00ea4aac",
  "collection": "us",
  "page": 0
}

Response

A successful request returns 200 OK with the standard search response.

Products do not carry a per-item similarity score. The order of products_list reflects similarity. Deployment filters, merchandising rules, and pinned products apply the same way they do for text search.

Example, truncated:

{
  "page": 0,
  "total_result": 143,
  "behavior_id": "d6bd6099-ef18-447d-8cf3-1651c96d8747",
  "is_from_cache": false,
  "products_list": [
    {
      "prod_code": "YP0T56ZQU_0NO",
      "brand": "Valentino Garavani",
      "name": "Rockstud leather pump"
    },
    {
      "prod_code": "XW2S0A66VBS_0NO",
      "brand": "Valentino Garavani",
      "name": "Roman Stud slingback"
    }
  ],
  "refinements": [],
  "user_data": {
    "customer_id": "rnvk0z2ymu3r4gmt2gjhr7jhg3g8nep7",
    "access_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...",
    "expiration_date": "2026-09-04T09:15:00"
  }
}

Product fields other than prod_code depend on your catalog configuration.

Errors

If the engine referenced by the deployment does not have search_type set to "image", the request is treated as a text search. It returns 200 with results for an empty query rather than an error. Check the engine configuration if image results look wrong.

Examples

Replace the placeholder values with your own.

cURL

curl -X POST "https://prompt.xgen.dev/customers/CUSTOMER_ID/users/USER_ID" \
  -H "x-api-key: YOUR_API_KEY" \
  -H "x-api-secret: YOUR_API_SECRET" \
  -F 'json={"deployment_id":"DEPLOYMENT_ID","collection":"us","page":0}' \
  -F "image=@./shoe.jpg;type=image/jpeg"

JavaScript (browser or Node 18+)

This example uses an access token that your backend obtained with the API key and secret.

async function imageSearch(file, accessToken, page = 0) {
  const formData = new FormData();
  formData.append(
    "json",
    JSON.stringify({
      deployment_id: "DEPLOYMENT_ID",
      collection: "us",
      page,
    })
  );
  formData.append("image", file); // a File or Blob with an image/jpeg or image/png type

  const response = await fetch(
    "https://prompt.xgen.dev/customers/CUSTOMER_ID/users/USER_ID",
    {
      method: "POST",
      headers: { access_token: accessToken },
      body: formData, // do not set Content-Type; the browser adds the multipart boundary
    }
  );

  const data = await response.json();
  if (!response.ok) {
    throw new Error(data.error || data.message || `HTTP ${response.status}`);
  }
  return data;
}

Python

import json
import requests

url = "https://prompt.xgen.dev/customers/CUSTOMER_ID/users/USER_ID"
headers = {
    "x-api-key": "YOUR_API_KEY",
    "x-api-secret": "YOUR_API_SECRET",
}
payload = {
    "deployment_id": "DEPLOYMENT_ID",
    "collection": "us",
    "page": 0,
}

with open("shoe.jpg", "rb") as f:
    files = {"image": ("shoe.jpg", f, "image/jpeg")}
    data = {"json": json.dumps(payload)}
    response = requests.post(url, headers=headers, files=files, data=data)

response.raise_for_status()
body = response.json()

print(body["total_result"], "matches")
for product in body["products_list"]:
    print(product["prod_code"])

# Reuse this token for later requests instead of sending the key and secret again.
access_token = body["user_data"]["access_token"]

Tips

• Tune the threshold on the engine, not per request. Start around 0.2 and adjust while looking at real results. A higher value returns fewer, closer matches. A value of 0 returns the whole catalog.
• Resize before uploading. Photos from a phone camera are often larger than 5 MB. Downscale to around 800 pixels on the long edge and re-encode as JPEG before sending. Similarity quality does not need a high-resolution image.
• Crop to the product. Results are best when the item of interest fills most of the frame with minimal background clutter.
• Paginate with page and page_size. Because results are not cached, every page request re-runs the image match. Keep the image available on the client so you can resend it.
• Cache the access token. Reuse it for the same user_id until expiration_date, then re-authenticate with the key and secret.
